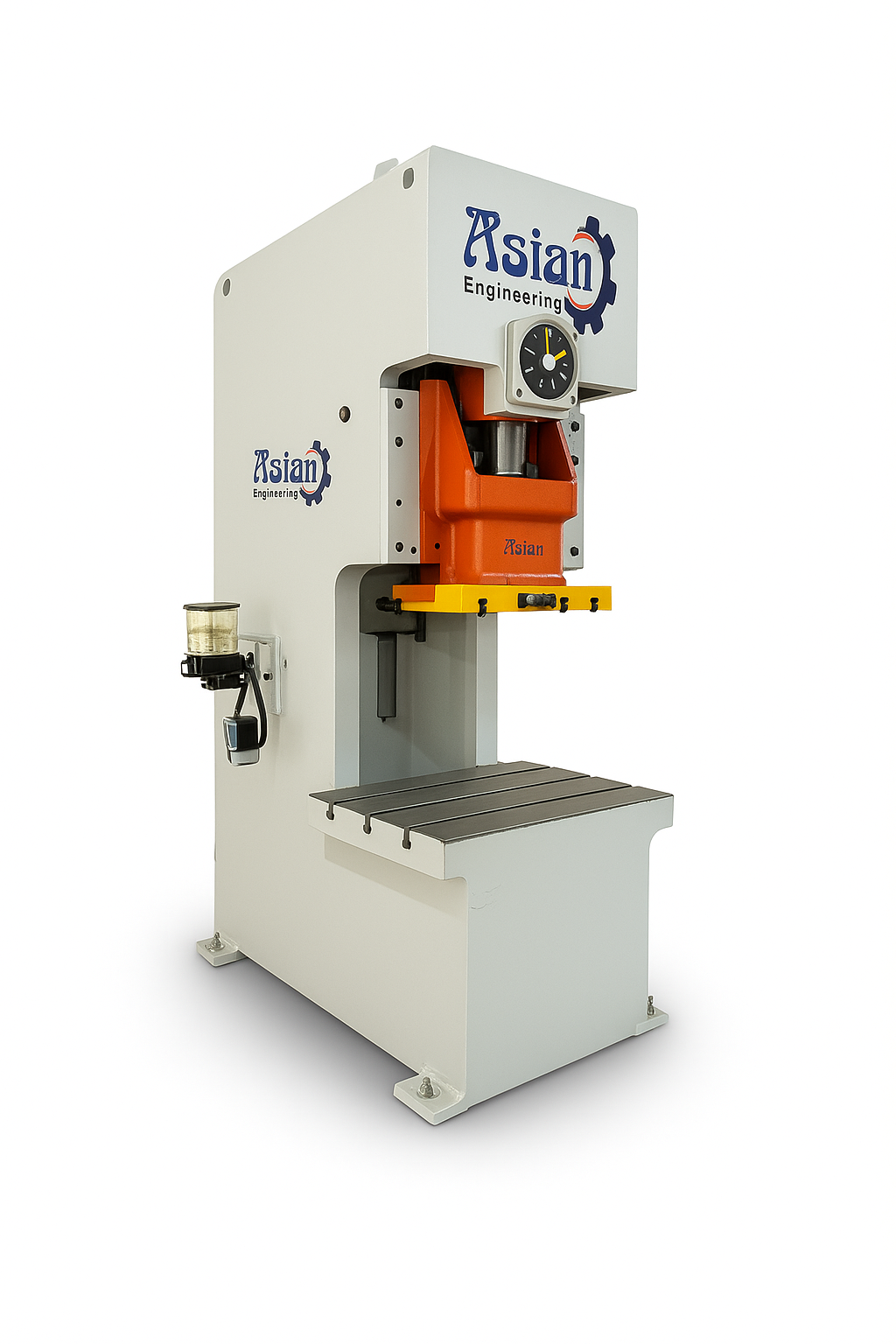

AS / 45 - AF (2 CAVITIES)

AS / 45 - AF (2 CAVITIES)

Nominal Force	45T / AS
Main Motor	11HP (ABB / Siemens)
Stroke Range	180 - 200 mm
Adjustable Speed	30 - 90 Times / Min.
Thickness of Material	28 to 50 Microns
Container Size	100 ML - 1200 ML
Electrical Supply	Three Phases
Power Consumption	37 to 40 Units (8hr.)
Machine Weight	2.5 to 3-ton Approx
Machine Dimension	12 ft X 5.5 ft X 11 ft (L X W X H)
Adjustable Speed	30 - 90 Times / Min.
Press ton Capacity	45 ton
System	Automatic System

Product Details

Product Details

Model	AS / 45 - AF
Type	2 Cavity Foil Bowl
Material	Aluminum Foil (Food Grade)

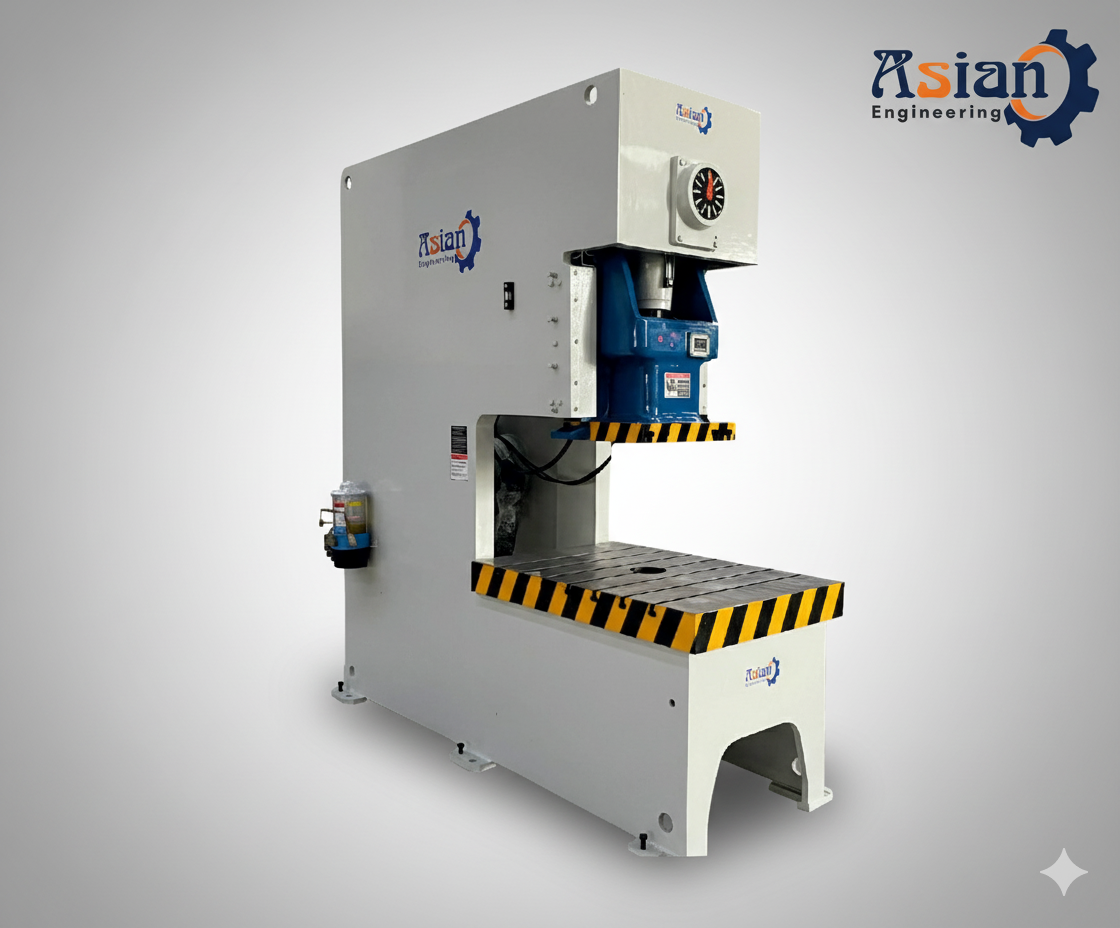

AS / 80 - AFC (5 CAVITIES)

AS / 80 - AFC (5 CAVITIES)

Production Speed	180/min
Required Material	Aluminum foil
Thickness Of Material	28 to 50 Microns
Container Size	100ML- 1200ML
Electrical Supply	Threephases
Power Consumption	Power Consumption
Total Machine Weight	08 to 10-ton Approx
Machine Dimension	12 ft X 10 ft X 12 ft (L X W X H)
Press ton Capacity	80 ton
System	Automatic System
Machine Production Area	3000 Square Feet
Bolster Plate Size	1300mm900mm80mm

Product Details

Product Details

Cavity	4- Cavity
Size Of Container	As Per User
Material	SKD 11, GS D2#Steel

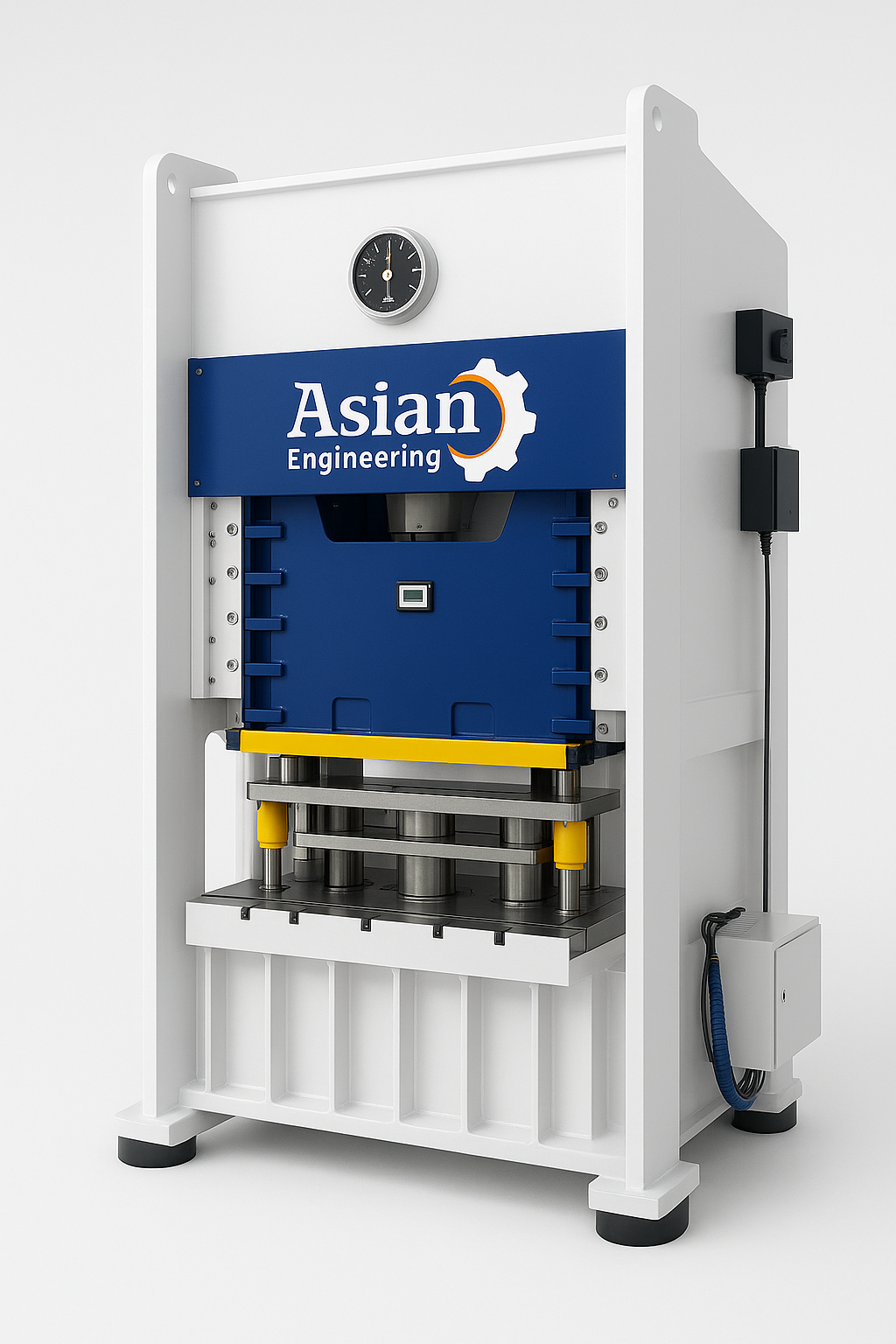

AS / 80 - AFHS (4 CAVITIES)

AS / 80 - AFHS (4 CAVITIES)

Production Speed	180/min
Required Material	Aluminum foil
Thickness Of Material	28 to 50 Microns
Container Size	100ML- 1200ML
Electrical Supply	Threephases
Power Consumption	Total Consumption Unit as Main Motor 15 Hp + Compressor 12 Hp + 3 Hp Scrap Collector
Total Machine Weight	10 to 12-ton Approx
Machine Dimension	12 ft X 10 ft X 12 ft (L X W X H)
Press ton Capacity	110 ton
System	Automatic System
Machine Production Area	3000 Square Feet
Bolster Plate Size	1300mm900mm80mm

Product Details

Product Details

Cavity	5- Cavity
Size Of Container	As Per User
Material	SKD 11, GS D2#Steel

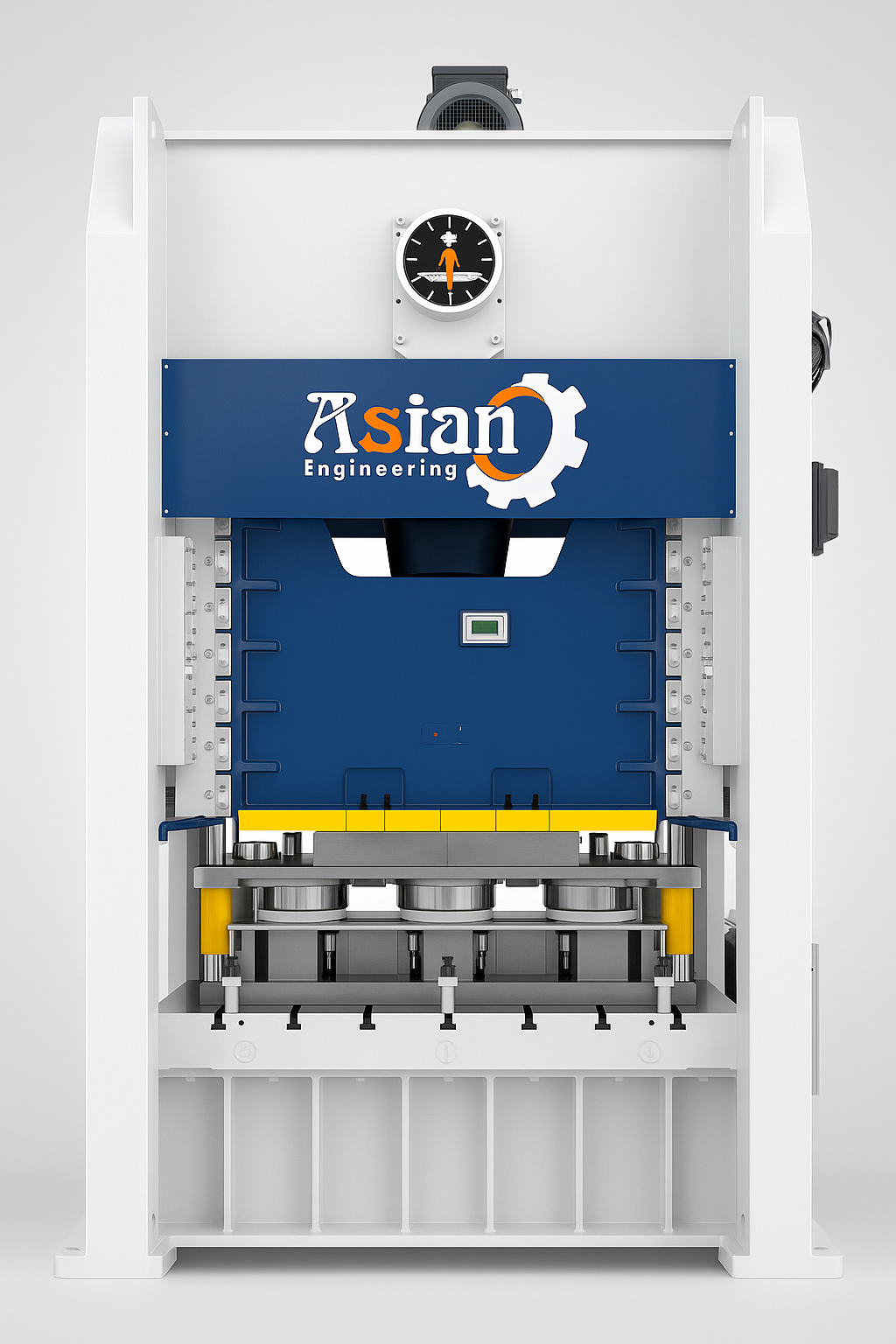

AS / 150 - AFHS (6 CAVITIES)

AS / 150 - AFHS (6 CAVITIES)

Production Speed	225/min
Required Material	Aluminum foil
Thickness Of Material	28 to 50 Microns
Container Size	100ML- 1200ML
Electrical Supply	Threephases
Power Consumption	Total Consumption Unit as Main Motor 15 Hp + Compressor 12 Hp + 3 Hp Scrap Collector
Total Machine Weight	14 to 16-ton Approx
Machine Dimension	12 ft X 10 ft X 12 ft (L X W X H)
Press ton Capacity	150 ton
System	Automatic System
Machine Production Area	3000 Square Feet
Bolster Plate Size	1700mm1100mm100mm

Product Details

Product Details

Cavity	6 - Cavity
Size Of Container	As Per User
Material	SKD 11, GS D2#Steel
